Shower Door Kits

Our METRO sliding shower door header kit contains the following parts:

Brushed Stainless Steel METRO Top Bar Tube 72" (1830mm), 22mm 1 ea. (A1808-2272BSS)

Brushed Stainless Steel METRO Top Bar Tube Wall Mount End Cap 2 ea. (A1808-1001BSS)

Brushed Stainless Steel METRO Glass Anti-Lift Fitting,24mm 2 ea. (A1808-1002BSS)

Brushed Stainless Steel METRO Door Stop with O-Ring 2 ea. (A1808-1003BSS)

Brushed Stainless Steel METRO Top Rollers 2 ea. (A1808-1005BSS)

Brushed Stainless Steel METRO Fixed Glass Mount Clamps, 25mm 2 ea. (A1808-1006BSS)

Brushed Stainless Steel Sliding Floor Guide with Fixed Panel Clamp 1 ea. (A1200-1000BSS)

Brushed Stainless Steel METRO Wall Clamp with Gasket 2 ea. (C1300-1000BSS )

Brushed Stainless Steel METRO Sliding Door Knob, 57mm 1 ea. (H2301-0052BSS)

P100-1000MIL Installation Hardware Kit
M5x51mm Self-tapping Screw - MIL 6 ea.

8mm Swell Plastic Plug - White 6 ea.
2.5mm Allen Tighten Tool - MIL 1 ea.
4mm Allen Tighten Tool - MIL1 ea.
5mm Allen Tighten Tool - MIL1 ea.

80" Long 3/8 Inch (10mm) Polycarbonate Bulb Seal 1 ea. (S1380-6080CLR)

80" Long 3/8 Inch (10mm) Thick Glass - PVC Seal, Soft Edge 32MM 1 ea.(S1380-6180CLR)

10mm PVC SEAL, LENGTH 38" (960mm) 1 ea. (S1380-7038CLR)

Brushed Nickel Half Moon Threshold, 39-3/8" (1000 mm) 1 ea. (A1000-0039BRN )

Brushed Nickel U-Channel, 39-3/8" (1000 mm) 1 ea. (C2110-3839BRN )

For 90-degree showers, use the following additional part:

Brushed Stainless Steel METRO 90-Degree Glass-to-Glass Clamp with Gasket (C1400-1000BSS)

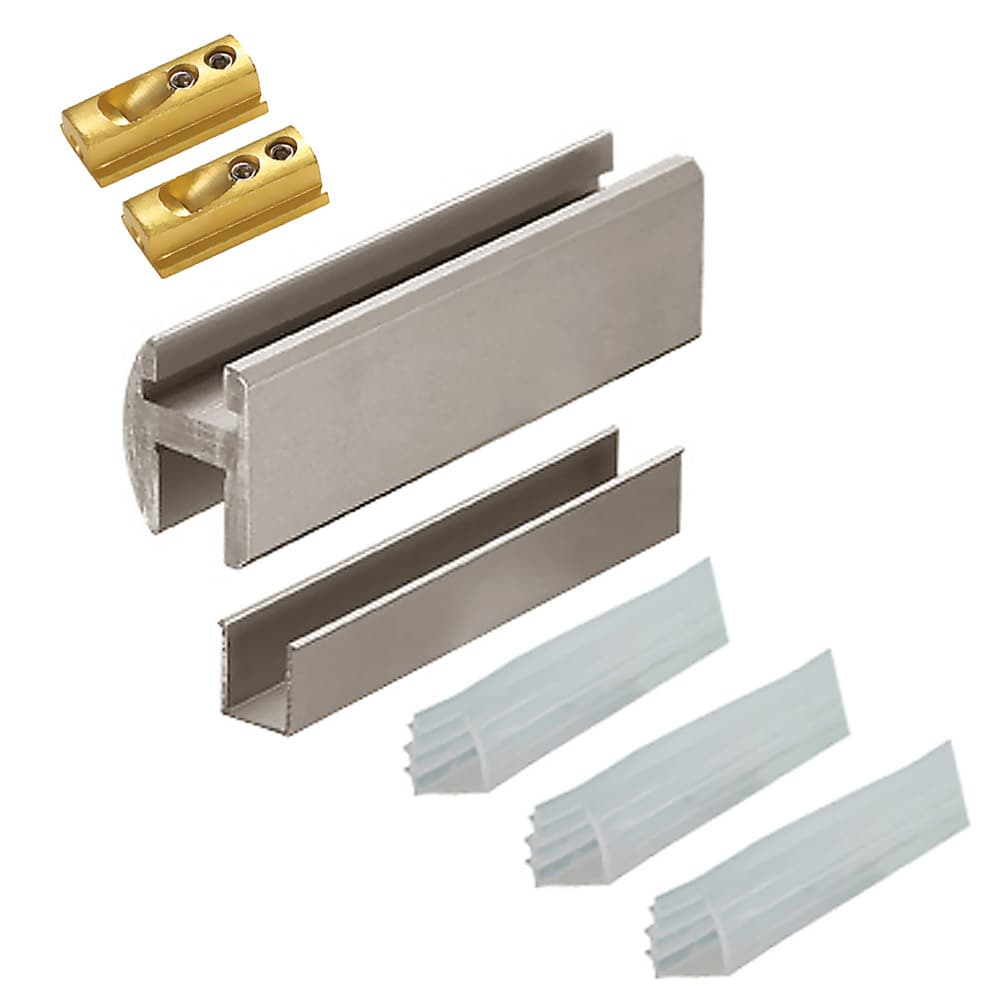

Metro Sliding Shower Door Header Kit

This stunning shower header kit secures glass panels that do not extend to the ceiling. It is constructed of aluminum alloy with a bright anodized finish and a round profile for a smooth aesthetic. Each header has a narrow 1-1/4" (32 mm) face for a streamlined look. Brass wall brackets are included in each kit. A blank mounting bracket is offered separately for installations where the header does not meet the wall at 90 degrees.

Use a monolithic tempered glass with glass thicknesses of 1/4"(6mm), 5/16" (8mm), 3/8" (10mm), and 1/2" (12mm) glass. Vinyl for 1/4"(6mm), 5/16" (8mm), and 3/8" (10mm) glass options are provided in the kit. No vinyl is needed for 1/2" (12mm) glass. Snap-in filler insert for door pocket included. One side is round and the other side is flat
