Most fixed shower panels use 3/8-inch tempered glass. That thickness spans a standard opening and gives the panel a clean, substantial frameless look — while tempering, not thickness, is what makes the glass shower-safe. Here's when to step up to 1/2 inch and when 1/4 inch is enough.
Reviewed by John Flouhouse, Installation Team Lead at Dulles Glass
Glass thickness for fixed shower panels is a structural decision, not a cosmetic one. The thickness determines how wide the panel can span without noticeable flex, how much load the wall anchors carry, and whether the glass can support its own weight without a header or frame.
Key Takeaways
- 3/8 inch tempered glass is the standard for frameless fixed shower panels.
- 1/2 inch tempered for very wide, tall, heavy, or minimally supported panels, or for premium visual heft.
- 1/4 inch tempered only on framed or semi-framed kits with structural metal channels.
- 3/8 inch glass weighs about 4.9 lb per square foot; 1/2 inch is about 6.5 lb per square foot.
- Shower glass must be tempered safety glass that complies with ANSI Z97.1 and 16 CFR Part 1201.
Quick Answer: Best Glass Thickness for a Fixed Shower Panel
For most residential frameless fixed shower panels, use 3/8-inch tempered glass. Step up to 1/2-inch tempered for very wide or tall panels, panels with unsupported top corners, or when you want a more substantial visual look — unusually wide, tall, heavy, or minimally supported panels should be reviewed by an installer to confirm thickness and support. 1/4-inch tempered glass is generally used in framed or semi-framed kits where the framing system provides support.
Glass Thickness Options for Fixed Shower Panels
Three thickness options exist for fixed shower glass:
- 3/8 inch (10mm) — standard frameless thickness
- 1/2 inch (12mm) — premium upgrade for wider panels or thicker visual look
- 1/4 inch (6mm) or 5/16 inch — framed or semi-framed kits only
Edge comparison — 1/4", 3/8", and 1/2" tempered shower glass shown side by side at actual relative thickness.
For shower enclosures, the glass must be tempered safety glass that complies with ANSI Z97.1 and 16 CFR Part 1201. Thickness affects rigidity and support, but tempering is what meets the safety-glazing requirement. Tempered glass is roughly four times stronger than annealed glass, and when it does break it crumbles into small blunt pebbles instead of dangerous shards. Final glass thickness and support should follow local code, manufacturer hardware ratings, and site-specific installation conditions.
Because tempered glass cannot be cut, drilled, or polished after tempering, final dimensions and hole locations must be confirmed before fabrication.
3/8 Inch: The Standard
3/8-inch tempered glass is the default for frameless fixed shower panels. The thickness gives the glass enough structural rigidity to support its own weight without a frame, and accepts standard wall-mount clamps and U-channels.
For many residential fixed panels, 3/8-inch tempered glass is the standard choice. Very wide panels, tall panels, panels with unsupported top corners, or panels without adequate wall or blocking support should be reviewed by an installer and may require 1/2-inch glass, additional support, or different hardware. Industry guidance from the National Glass Association points to the same principle: the right thickness depends on panel size and how the glass is supported, not on a single fixed width.

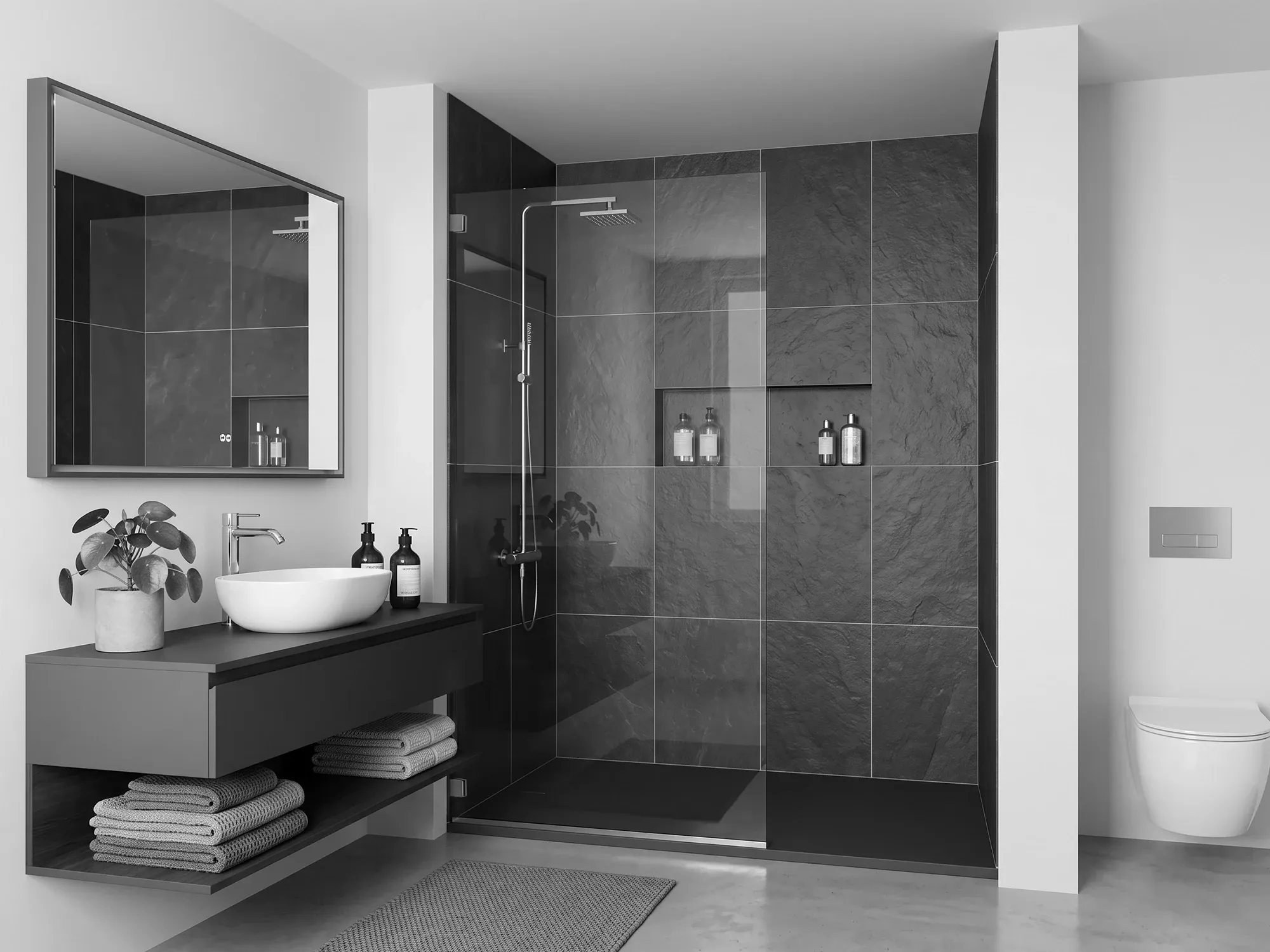

A 3/8-inch frameless fixed shower panel anchored with wall clamps and a base U-channel — the standard setup for a clean walk-in look.
Use 3/8 inch when:
- The panel is a typical residential size and has adequate wall, blocking, and hardware support
- Panel height is in the standard range, often up to about 76 inches
- The wall mount has at least one stud or solid blocking for the clamp
- You want the standard frameless visual look
1/2 Inch: When to Upgrade
1/2-inch tempered glass is the premium upgrade. It costs more, weighs more, and has a more substantial edge profile. The structural reason to upgrade: wider unsupported spans.
Use 1/2 inch when:
- Panel is very wide, unusually tall, minimally supported, or lacks a structural header
- You want a more substantial visual weight at the glass edge
- The bathroom design calls for a more commercial or hotel-style look
- You're matching existing 1/2-inch glass elsewhere in the bathroom
The trade-offs: 1/2-inch glass usually costs significantly more than 3/8-inch glass, weighs about 30 percent more, and requires heavier-rated hardware. The wall anchors must hit solid framing.
1/4 Inch: Where It Fits
1/4-inch tempered glass is not used in frameless fixed shower installations. The glass is too thin to support its own structural load without a metal frame.
Where 1/4 inch fits:
- Framed shower screens — aluminum frame on all four sides carries the load
- Semi-framed configurations — metal channel at top and bottom only
- Some prefab kits — specifically marketed as 1/4-inch framed or semi-framed
If your supplier offers 1/4-inch glass on a fully frameless fixed panel, that is a reason to ask more questions — the panel will flex visibly under any side load and risks long-term anchor stress.
Glass Weight by Panel Size
| Panel size | 3/8" weight | 1/2" weight |
|---|---|---|
| 24" x 72" | 59 lb | 78 lb |
| 30" x 72" | 74 lb | 98 lb |
| 36" x 72" | 88 lb | 117 lb |
| 48" x 72" | 118 lb | 156 lb |
| 60" x 76" | 155 lb | 206 lb |
Weight matters for two reasons: hardware rating and install logistics. A 156-pound panel needs a two-person lift with proper suction cup handles; a 60-pound panel is easier to handle, but shower glass installation is still best done with proper lifting equipment and support.
Design and Installation Notes
Thickness is mostly a structural decision, but it also shapes how the finished shower looks and feels. The exposed glass edge is the most visible cue: a 3/8-inch edge reads light and minimal, which suits a clean, understated walk-in look, while a 1/2-inch edge has more visual heft and reads as more substantial — closer to a hotel or showroom feel. Neither is better; it comes down to the look you're after.
Hardware finish is the other detail that ties the panel into the room. Wall clamps, U-channels, and any support bar come in finishes such as polished chrome, brushed nickel, matte black, and brushed gold, and the finish you pick usually follows the shower fixtures and bathroom hardware already in place. Heavier 1/2-inch glass also calls for hardware rated for the extra load, so the finish choice and the structural choice are often made together. For help matching glass thickness, hardware, and finish, our shower hardware and accessories options are a good starting point, and the shower door buying guide walks through the same decisions in more detail.
3/8 inch is the right answer for many residential fixed shower panels. 1/2 inch is the upgrade you choose when the design or the span pushes you there, not the default.
When You Should Ask an Installer
Most 3/8-inch fixed panels on standard openings are a straightforward order. It's worth bringing in an installer before you buy when any of these apply:
- No stud or solid blocking behind the wall where the panel will anchor.
- A very wide, tall, heavy, or minimally supported panel, where thickness, support, and hardware all need a second look.
- Walls that aren't plumb — the panel fit and the seal both depend on a square opening.
- A sloped or uneven curb that changes how the base of the panel sits.
- A ceiling-height panel, which carries more load and needs more support.
- Heavy 1/2-inch glass, which needs heavier-rated hardware and a two-person set.
Need Help Choosing Glass Thickness?
Not sure whether your opening needs 3/8-inch or 1/2-inch glass? Send Dulles Glass your panel dimensions, wall photos, and hardware preference, and our team can help confirm the right thickness before you order — so you order with confidence and get the clean frameless look you're after.
Explore our Tela shower screens, frameless shower doors, custom shower doors, and professional installation — or request a quote with your panel dimensions.
Frequently Asked Questions
How thick should glass be for a fixed shower panel?
Most fixed shower panels use 3/8-inch tempered glass. This thickness is commonly used for many residential fixed panels, including many standard residential panel sizes, depending on height, hardware, support, and layout. Very wide, tall, heavy, or minimally supported panels typically step up to 1/2-inch tempered glass.
What is the standard thickness for frameless shower glass?
3/8 inch (10mm) is the standard for frameless shower glass. It provides structural rigidity for unsupported panels and gives the door a substantial visual weight. 1/4 inch is used in semi-framed configurations; 1/2 inch is the premium upgrade.
Is 1/2 inch glass better than 3/8 inch for shower panels?
1/2 inch glass may be better for very wide panels, depending on height, support, and hardware, and it gives a more substantial visual look. It weighs about 30 percent more and costs more, so for most residential walk-in showers 3/8 inch is the right choice.
Can a fixed shower panel be 1/4 inch glass?
1/4-inch tempered glass is used in framed or semi-framed shower screens, where the metal frame provides structural support. Frameless fixed panels need 3/8-inch glass at minimum because the glass carries its own structural load.
How much does a 3/8 inch fixed shower panel weigh?
3/8 inch tempered glass weighs about 4.9 pounds per square foot. A standard 48 x 72 inch fixed shower panel weighs about 118 pounds. 1/2 inch glass weighs about 6.5 pounds per square foot for the same area, about 156 pounds for the same panel.
