A worn shower door seal is one of the most common sources of water on the bathroom floor, and the easiest frameless shower door repair to do yourself. Here's how to identify your seal type, source the right replacement, and install it cleanly in about 10–15 minutes.
Reviewed by John Flouhouse, Installation Team Lead at Dulles Glass, based on field measurements and installations.
Most shower door seal problems are simple to diagnose: cracked vinyl, a visible gap, or water escaping from the bottom or side of the door. The key is matching the replacement seal to the glass thickness and channel profile before you start. The good news: replacing a shower door seal is usually a simple DIY repair that takes about 10–15 minutes with a utility knife, tape measure, and the new seal. This guide explains how to identify the right shower door seal, where to source a replacement, and how to install it cleanly on frameless, hinged, and sliding shower doors.
Key Takeaways
- Three seal locations on most frameless shower doors: the bottom sweep, the wall-side strike, and (on sliders) the vertical seal between panels.
- Lifespan: 3–5 years for most vinyl seals in residential use. Sooner if heavily used or exposed to bleach or abrasive cleaners.
- Identify your seal profile first. Seals are sold by glass thickness (1/4" vs 3/8") and channel type (U-channel, H-channel, magnetic, side-bumper).
- Replacement takes about 10–15 minutes per seal with a utility knife, a tape measure, and the replacement strip.
- $15–$40 in materials per seal at most online glass-hardware suppliers. Bring the old seal to the supplier, or photograph the profile before ordering, to help match it accurately.
The Three Types of Shower Door Seals

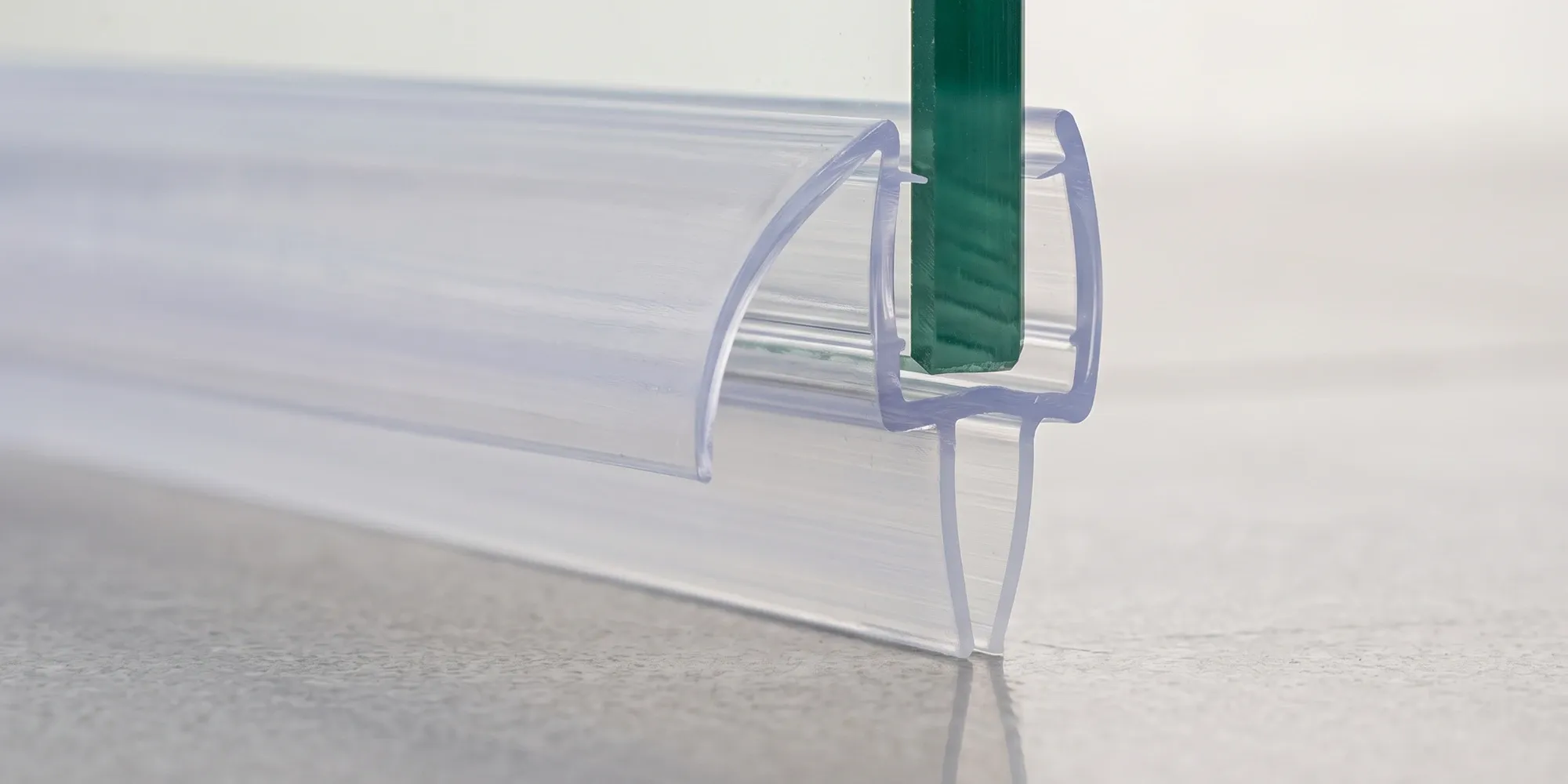

1. Bottom sweep (shower door bottom seal)
The bottom sweep runs along the bottom edge of the door. It's a vinyl strip with a flexible fin that drags lightly against the threshold or curb when the door closes, deflecting water back into the shower. A worn bottom sweep is one of the most common reasons a shower door leaks at the bottom. Found on every frameless shower door type — hinged, pivot, sliding. Shower door sweep replacement is the most frequent repair on this list.

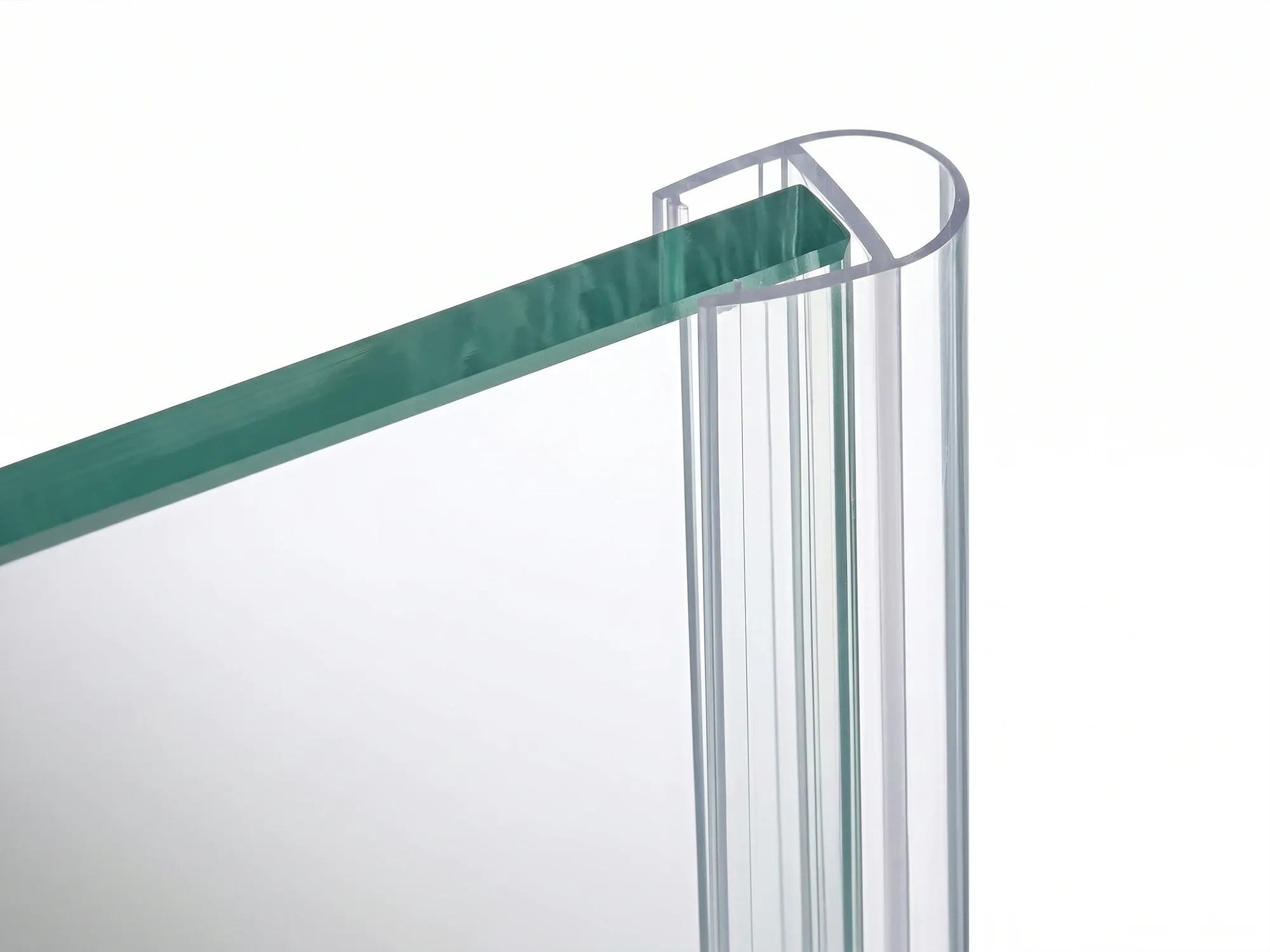

2. Wall-side seal (strike or magnetic shower door seal)
The wall-side seal runs vertically where the swinging door panel meets the wall (or the fixed return panel) when closed. It's sometimes called the strike seal, the jamb seal, or the magnetic shower door seal because many include a thin magnetic strip that helps pull the door into the closed position. Found on hinged frameless doors.

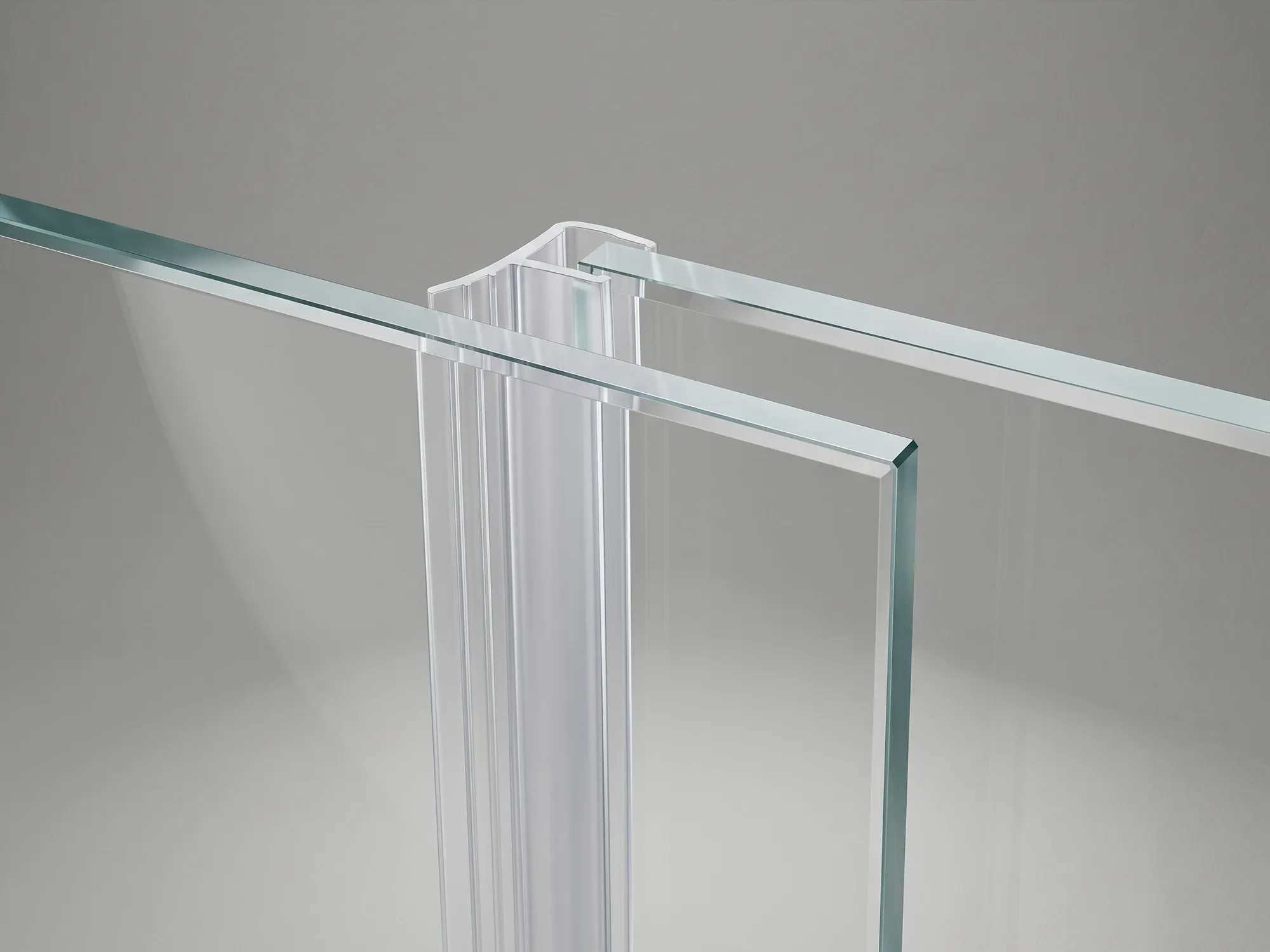

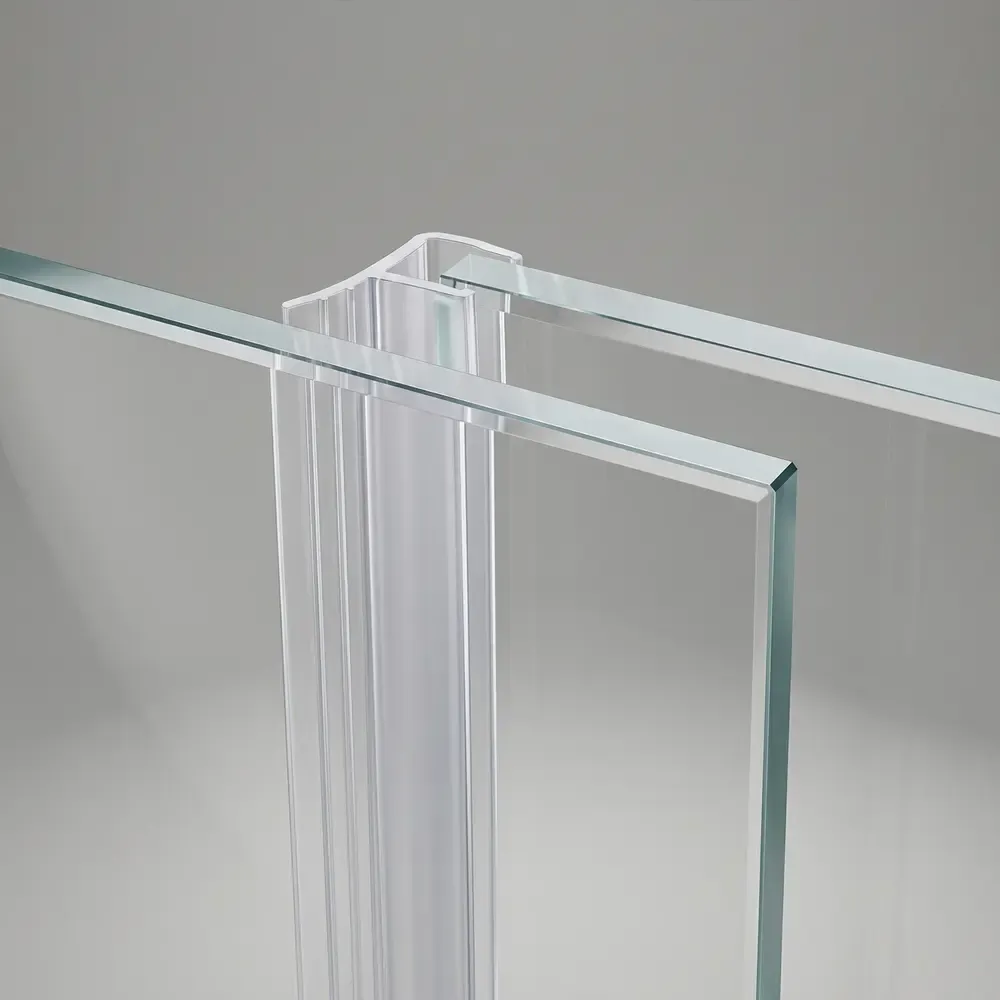

3. Sliding shower door seal (vertical seal between panels)
On bypass sliders, the two glass panels overlap when the door is closed. A vinyl sliding shower door seal runs along the vertical edge of one panel and compresses against the adjacent panel, stopping water from spraying through the gap. Often the first seal to fail on a slider because it sees the most flex with every open-close cycle.
A Fourth, Less Common Seal
Some custom installations use a horizontal seal at the top of the glass where it meets the underside of the top track. This is typically pre-installed at fabrication and rarely needs field replacement. If you see water getting past the top of the door, the silicone bead at the wall plate is usually the actual problem, not the top seal.
When to Replace a Shower Door Seal
Replace the Seal If You See These Signs
- Visible cracking in the vinyl, especially where it bends
- The vinyl is chalky, hard, or brittle instead of slightly pliable
- Water leaking past the seal during showers, even with the door fully closed (shower door leaking at the bottom is the most common sign)
- Visible gap between the seal and the glass when the door is closed
- The magnetic strip no longer pulls the door closed on hinged doors
- Discoloration that doesn't wipe off — the vinyl has absorbed cleaning chemistry
In short: replace it before leaks become noticeable. Cracking and chalkiness mean the vinyl has already started to degrade.
How to Identify a Frameless Shower Door Seal
Before ordering a replacement, identify the existing seal exactly. The wrong profile won't seat in the channel and won't seal properly even if it fits.
Profile depends on three things:
Glass thickness
Measure the glass with a tape or calipers at any edge. The two common thicknesses:
- 1/4" glass: seals are narrower, with a smaller channel
- 3/8" glass: seals are wider, with a larger channel
Channel type
Look at how the existing seal attaches to the glass. The most common attachment types are:
- U-channel: seal slides over the edge of the glass and grips both sides. Most common on bottom sweeps and side seals.
- H-channel (or "bottom-bumper"): seal seats in a channel at the bottom of the glass, with a fin extending below. More common on framed and semi-frameless doors.
- Magnetic strike: contains an embedded magnet that mates with a steel insert in the wall jamb or strike jamb (or matching magnetic seal on the other panel). Vertical strike on hinged doors.
- Side-bumper: a vertical seal that mounts to the wall (not the glass) and the glass presses against it.
Length and end profile
Measure the seal length to the nearest 1/8". Note whether the existing seal has a 90-degree corner cut, a 45-degree miter, or a straight cut at each end — you'll match this when cutting the new seal.
Where to Buy a Replacement Shower Door Seal
Best options:
- The original manufacturer. If you know your shower door brand, contact them with the model number. They usually stock matched replacement parts.
- Online glass-hardware specialty suppliers (CRL/C.R. Laurence, US Horizon, Showerdoorhinge.com) carry universal profiles in standard sizes.
- Big-box stores (Home Depot, Lowe's) carry generic seal profiles but selection is limited.
- Dulles Glass can help identify replacement seals for doors we made or installed, using your original order details.
What to Avoid When Buying a Replacement Seal
- Universal "cut-to-fit" seals from auto-parts or general hardware stores — they're not shower-specific and the vinyl chemistry isn't formulated for chlorine and cleaning exposure
- Seals significantly cheaper than the profile-matched options — they're usually softer vinyl that cracks within a year
How to Replace a Shower Door Seal
Step-by-Step Replacement
- Open the door fully so the seal is accessible.
- Pull the old seal out by hand. Most slide-in seals release with steady tension. Stubborn seals can be loosened with a thin putty knife between the seal and the channel.
- Wipe the channel clean with a damp microfiber. Any residue or mineral buildup in the channel will prevent the new seal from seating fully.
- Measure the channel length. Cut the new seal to that length using a sharp utility knife or shears. Match the end profile of the original (90-degree, 45-degree miter, etc.).
- Slide the new seal into the channel starting from one end. Lubricate with a thin film of soapy water if it's tight — dry vinyl on dry channel can grip too hard.
- Work the seal across the full length, pressing it firmly into the channel as you go.
- Trim any excess at the second end with the utility knife.
- Test the seal: close the door, check that the seal seats flat against the glass or adjacent panel with no visible gap. Run a brief test shower and look for leaks.
If the Seal Will Not Seat Flat
The most common cause is debris still in the channel — wipe it again with a damp microfiber. The second cause is the wrong profile — a 3/8" seal in a 1/4" channel won't fully seat. The third cause is glass that's slightly out of plumb — the seal compresses unevenly. None of these are emergencies; you can usually trim or shim, but it's worth confirming the profile match before forcing it.
How to Make Shower Door Seals Last Longer
The chemistry that ages vinyl seals is the same chemistry that damages glass and hardware: chlorine bleach, acidic cleaners (CLR, vinegar at full strength), and abrasive scrubbing.
To extend seal life from 3–5 years toward the 5-7 range:
- Use pH-neutral cleaner on glass and rinse the seal area with warm water afterward
- Squeegee water off the seal area daily to reduce time-in-contact with hard water minerals
- Don't let bleach-based cleaners pool against the seal
- Replace it before leaks become noticeable — cracking means UV or chemical degradation has already started
A small seal replacement is far cheaper than repairing water damage later.
Need help matching a seal profile?
If Dulles Glass made or installed your shower door, our team can look up the original specifications from your order and help identify the correct replacement seal. For doors we didn't make, send a photo of the old seal and the glass thickness and we can help identify a compatible profile. Service available.
Explore our frameless shower doors, custom shower doors, and shower door hardware options, or contact our team for replacement parts or installation help.
Frequently Asked Questions
How often should I replace shower door seals?
Every 3–5 years in normal residential use. Sooner if heavily used or exposed to bleach or abrasive cleaners. Replace the seal at the first sign of cracking, chalkiness, or a visible gap when the door is closed.
How do I know what type of shower door seal to buy?
Identify three things: glass thickness (1/4" or 3/8"), channel type (U-channel, H-channel, magnetic strike, or side-bumper), and length. The easiest path is to bring the old seal to the supplier, or photograph the profile before ordering, to help match it accurately. Universal profiles often don't seat correctly.
Can I replace shower door seals myself?
Yes — it's the easiest shower-door repair. Most seals take about 10–15 minutes to replace with just a utility knife and a tape measure. The hardest part is sourcing the correct profile. Once you have the right replacement, installation is straightforward.
Where can I buy replacement shower door seals?
Original manufacturer (if you know the brand and model), online specialty suppliers (CRL, US Horizon, Showerdoorhinge.com), big-box stores (limited selection of universal profiles), or Dulles Glass parts department for any door we made or installed.
Why does my shower door leak even with the seal in good condition?
Three likely causes: the seal is the wrong profile and doesn't seat flat (most common), the door is out of alignment (hinges have sagged, panel hangs off-square), or the silicone bead at the wall plate has failed (water tracks past the seal at the top corner).
Do magnetic shower door seals work?
Yes — they hold the door closed when the magnet is paired with a steel insert (or matching magnet) in the strike jamb. The seal also still provides the water barrier. Magnetic seals can lose magnetism over 10–15 years; replacement seals are available with fresh magnets.
References
- CRL (C.R. Laurence) and US Horizon shower-hardware product catalogs
- Dulles Glass parts inventory and replacement-seal specifications for DIY and custom installations
- Manufacturer guidance on vinyl seal lifespan and care across major shower-hardware suppliers
